Statie radio CB- HANDS FREE Crystal Sound
GARANTIE 24 LUNI
Statie radio mobila, HANDS FREE CB 27MHz, INTEK premium, FM, 4W, 13,8VDC, set casca - microfon si control PTT incluse,Digital Signal Processing.
Tehnologie inovatoare:
Procesorul de sunet DSP va garanteaza cel mai bun sunet posibil la o statie radio, procesat digital;
Inrarea in emisie este posibila doar prin voce, sau printr-un buton special aflat pe volanul statiei.

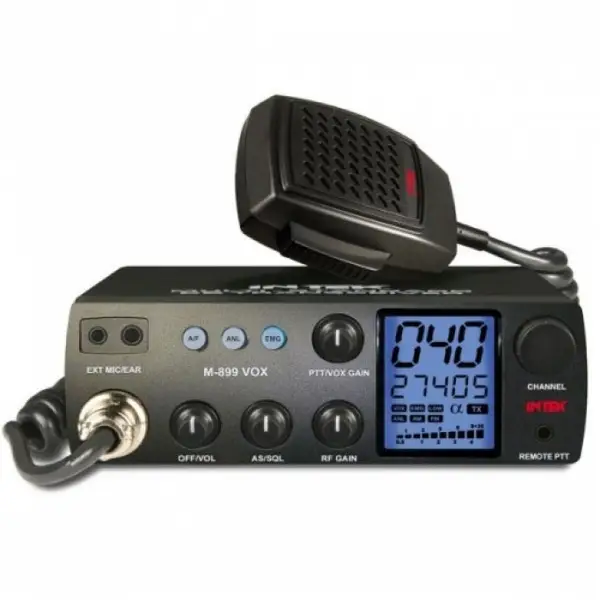

INTEK M-899 VOX - Statie Radio HANDS FREE CB 27 MHz Safe Drive
Features
MULTISTANDARD
9 BANDS PROGRAMMABLE
FOR USE IN ALL THE EUROPEAN COUNTRIES
LARGE SIZE BLUE COLOR BACKLIGHTED LCD
VOX FUNCTION WITH ADJUSTABLE VOX GAIN
MANUAL OR FIXED SQUELCH
RF GAIN CONTROL
BACKLIGHTED RUBBER KEYS
EXTERNAL EARSET JACK
EXTERNAL MIC JACK
REMOTE PUSH-TO-TALK INCLUDED
EXTERNAL EARSET-MIC WITH DUAL JACK INCLUDED
DUAL CHANNEL AND 5-DIGIT FULL FREQUENCY READOUT
DIGITAL S/RF BAR METER
ROTARY CHANNEL CONTROL
PA, EMG, ANL
EXTRA SOFT MICROPHONE CORD
Specifications
General
Modes (AM, FM)
As per selected band
Operating Temp.
-10°/+55°C
DC Input Voltage
13.2Vdc ±15%
Size
153(L) x 50(H) x 185(D) mm
Weight
750 gr.
TRANSMITTER
System
CPU Controlled PLL Synthesizer
Max Output Power
4W at 13.2Vdc
Modulation
AM (from 85% to 90%)
FM (1.8 KHz ±0.2 KHz)
Output Impedanced
50 Ohm unbalanced
Current Drain
1300 mA (at no modulation)
RECEIVER
System
CPU Controlled Double Conversion Super Heterodyne
IF
1° 10.695 MHz
2° 455 KHz
Sensitivity
0.5µV for 20dB SINAD (FM)
0.5µV for 20dB SINAD (AM)
Audio Output Power
@10% THD 2.5W at 8 Ohm
Adiacent Ch. Rejection
65dB
Image Rejection
65dB
Adjacent Ch. Rejec.
65dB
Signal/Noise Ratio
45dB
Current Drain
350mA (stand-by)
